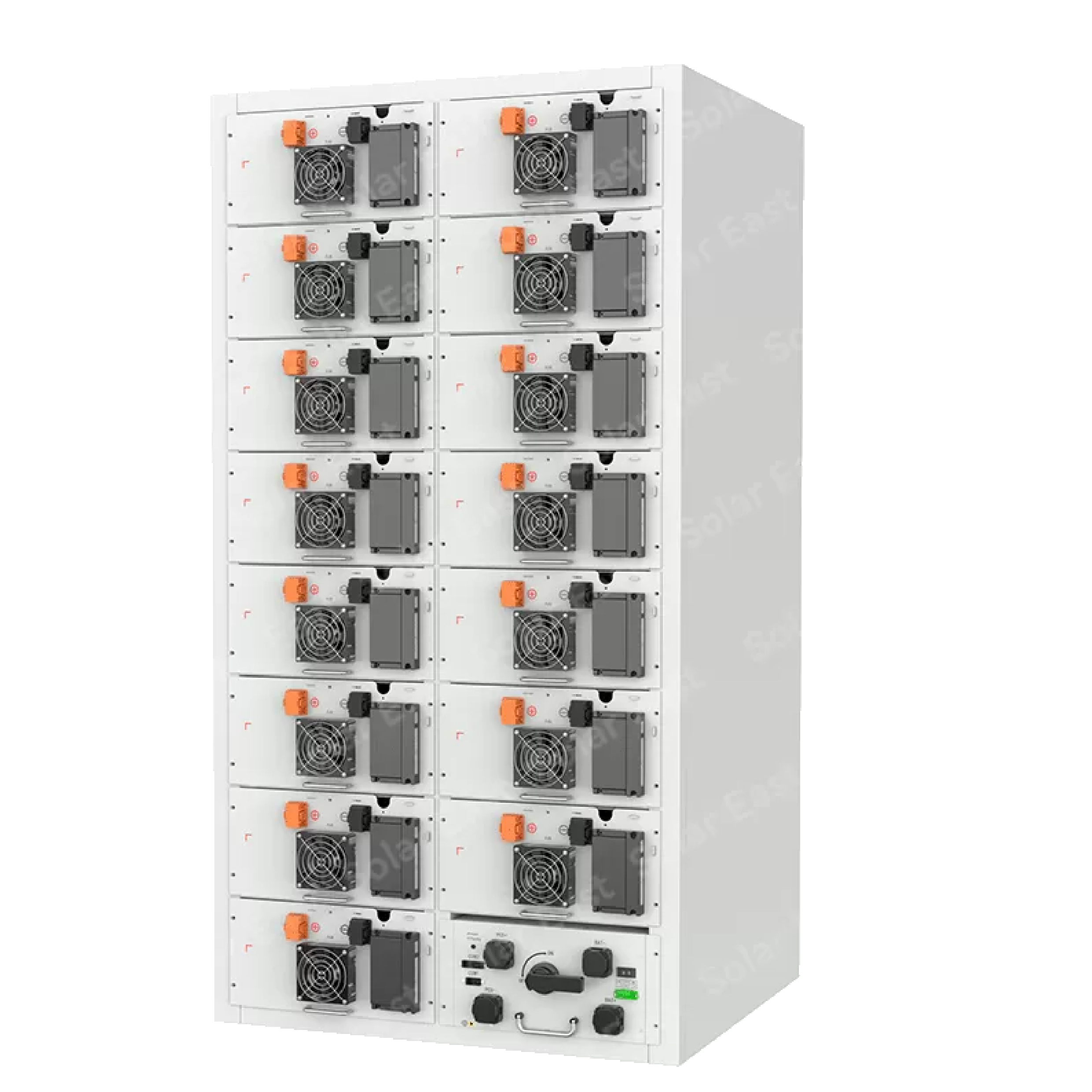

Air-cooling Rack Solutions
- 215kWh
Features:
- Multi-Layered BMS Safety
- Proactive Risk Containment
- Precision Thermal Control
- Validated Performance
- Modular & Scalable
- High-Voltage Ready
| Air-cooling Rack Solutions | ||
| Model | SE-RC-280A-1P16S*15 | SE-RC-280A-1P20S*12 |
| Cell type | LFP | |
| Cell capacity | 280Ah | |
| Group configuration | 1P16S*15 | 1P20S*12 |
| Nominal voltage | 768V | |
| Nominal capacity | 215kWh(@25°C±2) | |
| Efficiency | ≥94% | |
| Max. constant charging/discharging power | 0.5P | |
| Nominal charging/discharging current | 140A | |
| Range of operating voltage | 648V~864V | |
| Max. range of working temperature Charging | 0°C ~ 55°C | |
| Max. range of working temperature Discharging | ~30°C ~ 55°C | |
| Max. temperature of national standard full cycle battery cell | 35°C | |
| Max. temperature difference of national standard full cycle battery cell | 8°C | |
| IP rating | IP20 | |
| Environment humanity | < 90%RH (non-condensing) | |
| Cooling method | Air cooling | |
| Weight | 1950kg | 1920kg |
| Dimension(W*D*H) | 1056mm×830mm×2000mm | 1056mm×983mm×1740mm |
| Fire safety configuration | Aerosol | |
| Maximum working altitude | 2000m | |
| Cycle Life | 8000 | |
