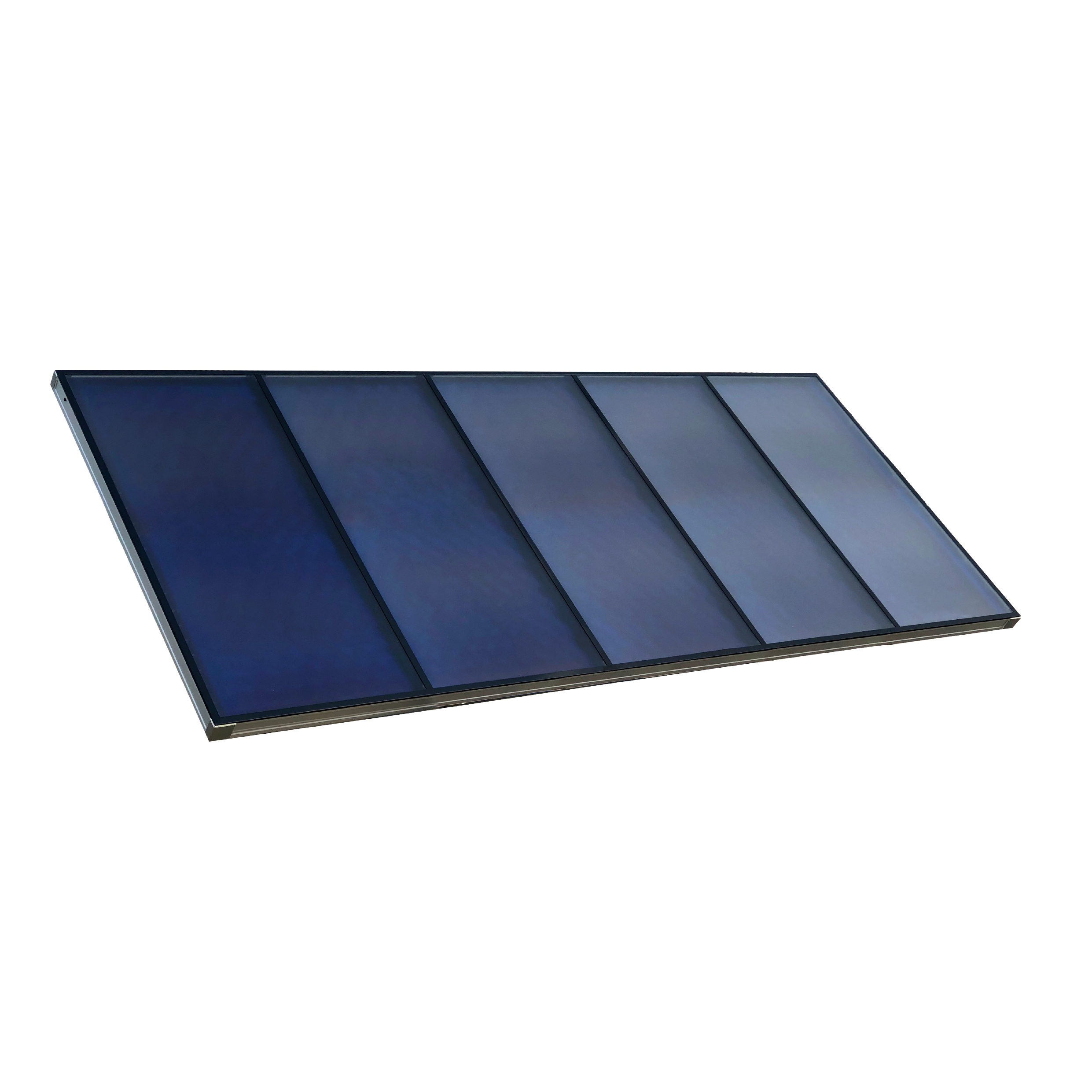

Flat Plate Collector FPC1500C
- 15㎡
Features:
- Rapid Heating, Minimal Loss
- Superior Absorption &Structure
- High-Pressure Resilience
- All-Weather Adaptability
- Easy to Install, Built to Last
| Flat Plate Collector FPC1200D | ||
| Model number | FPC1200D | |
| Dimension (mm): | 2000*1000*80 | |
| Aperture Area: | 1.85m² | |
| Certificate: | SRCC and Solar Keymark | |
| Warranty: | 5 years | |
| Absorber: | Blue titanium | |
| Cover Material: | Textured tempred glass, 3.25mm thickness | |
| Header Pipe: | TP2 copper φ22*0.75mm | |
| Flow Pipe: | TP2 copper φ10*0.5mm | |
| Connector Size: | 22mm no thread or 3/4 inch male thread | |
| Max. Operation Temparature: | 120℃ | |
| Operating fluid pressure: | 0.6Mpa | |
| Approved installation angle: | Min. 15° Max. 75° | |
| Empty Weight (KG): | 32 | |
| Package dimensions: | Box (mm) | 2070*1110*110 |
| Total (m³) | 0.253 | |
| 20GP/40HQ Loading Qty: | 114/275 | |
