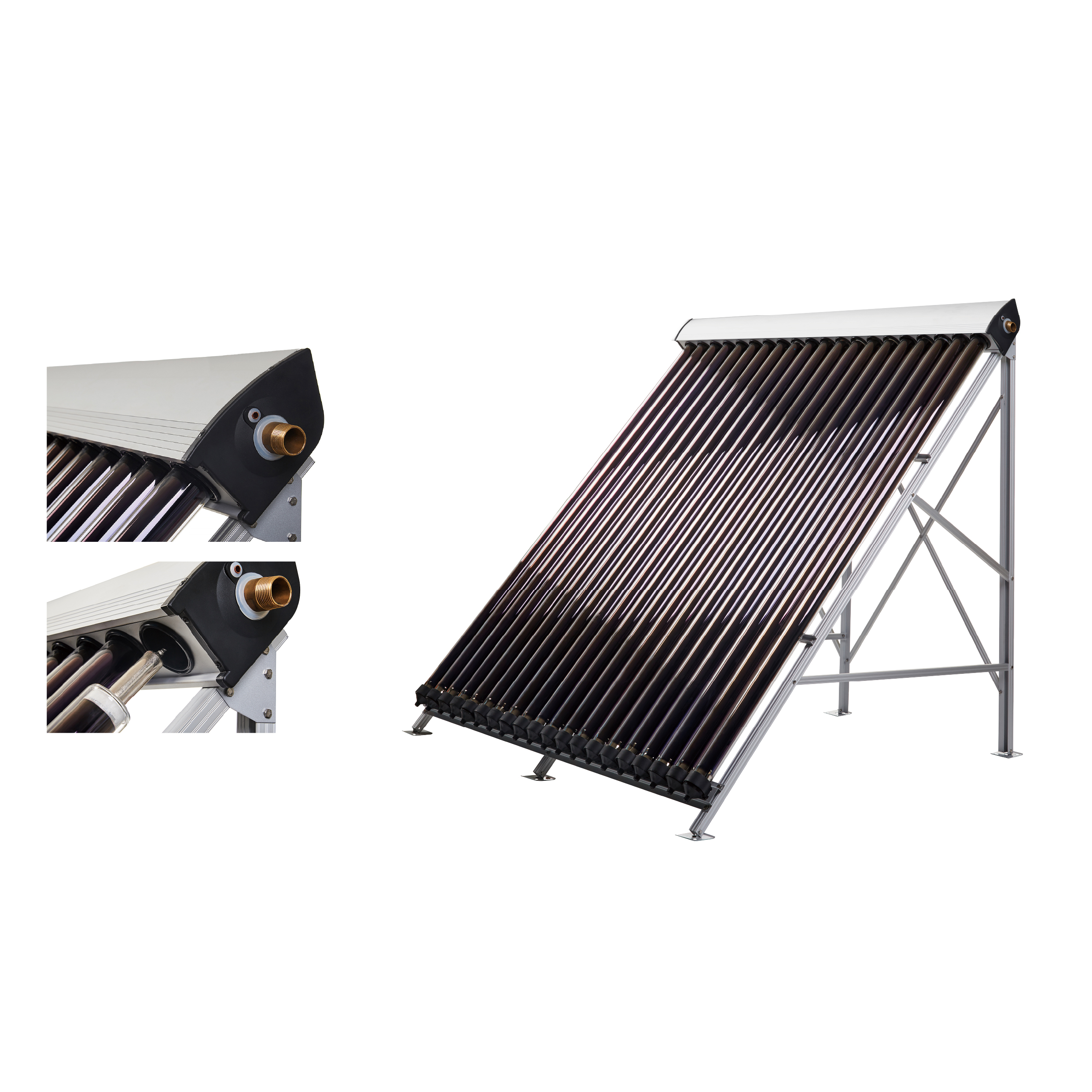

Heat Pipe Collector R5
- 10/15/20/25/30pipes
Features:
- Globally Certified & Proven Reliability
- Easy Installation & Low Maintenance
- Advanced Tech for Extreme Performance
- Efficient Heat Pipe Core Technology
- Fashionable & Durable Design
| Solar Heat Pipe Collector R5 | ||||||
| Model number | TZ58/1800-10R5 | TZ58/1800-15R5 | TZ58/1800-20R5 | TZ58/1800-25R5 | TZ58/1800-30R5 | |
| Aperture Area: | 0.936m² | 1.404m² | 1.871m² | 2.339m² | 2.791m² | |
| Certificate: | Solar Keymark | |||||
| Warranty: | 5 years | |||||
| Tube size and distance: | φ58/1800mm-78mm | |||||
| Condensor diameter: | φ14mm | |||||
| Manifold material: | Aluminum-1.5mm | |||||
| Manifold connection: | 3/4 inch | |||||
| Service Temparature: | 95℃ | |||||
| Operating fluid pressure: | 0.6Mpa | |||||
| Angle of frame: | 450 | |||||
| Empty Weight (KG): | 34 | 53 | 71 | 89 | 109 | |
| Package dimensions: | Manifold (mm) | 940*150*250 | 1340*150*250 | 1720*150*250 | 2110*150*250 | 2500*150*250 |
| Frame (mm) | 2000*150*50 | 2000*150*50 | 2000*150*50 | 2000*150*50 | 2000*150*50 | |
| Tube (mm) | 1880*330*180 *1pcs | 1880*330*180 *1.5pcs | 1880*330*180 *2pcs | 1880*330*180 *2.5pcs | 1880*330*180 *3pcs | |
| Total (m³) | 0.163 | 0.234 | 0.304 | 0.374 | 0.445 | |
| 20GP/40GP/40HQ Loading Qty: | 170/354/416 | 118/246/290 | 90/190/222 | 72/154/180 | 62/130/152 | |
