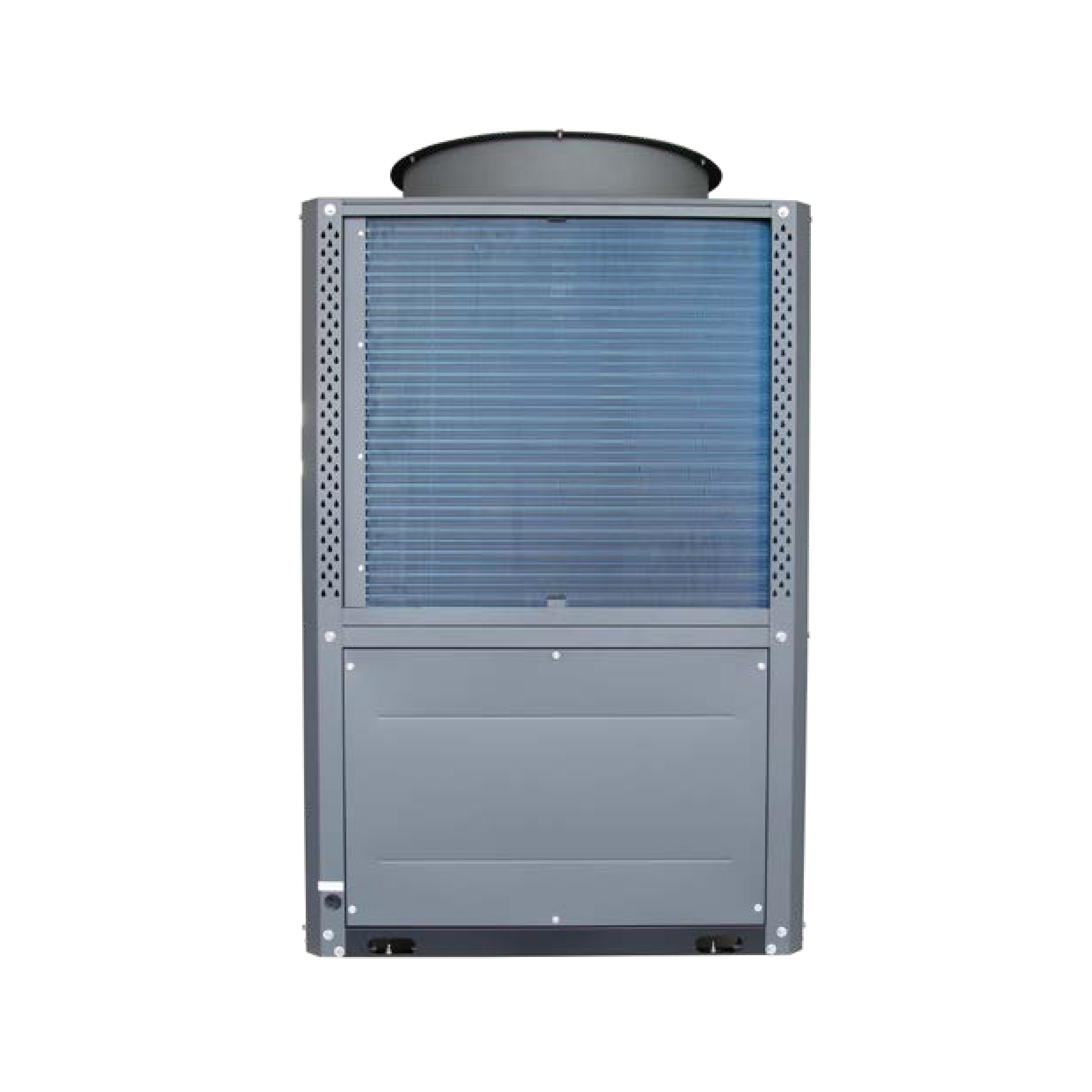

R290 50KW Monoblock Heat Pump
- 50KW
Features:
- R290 refrigerant, low GWP(GWP=3)
- Energy class: A+++
- Stable operation at -25°C
- Outet water temperature up to 75℃
- Integrated power consumption module
- Maximum 16 heat pumps operable in parallel
- Seamless loT management supported
- MODBUS RS485 communication ready
- OTA and DTU connectivity included
| Model | BLN-050TC3 | ||
| Power Supply | V/Ph/Hz | 380~415/3/50 | |
| Nominal Heating (Max) (A7/6℃,W30/35℃) | Heating Capacity | kW | 17.56~50 |
| Power Input | kW | 2.61~12.88 | |
| Current Input | A | 5.46~18.8 | |
| Nominal Heating (Max) (A7/6℃,W47/55℃) | Heating Capacity | kW | 17.95~49 |
| Power Input | kW | 3.48~17.2 | |
| Current Input | A | 7.78~26.8 | |
| Nominal Cooling (Max) (A35/24℃,W12/7℃) | Cooling Capacity | kW | 10~35 |
| Power Input | kW | 3.84~14.50 | |
| Current Input | A | 6.42~20.56 | |
| ERP Level（Outlet water temperature at 35℃） | / | A++ | |
| MAX. input power | kW | 19.84 | |
| MAX. input current | A | 30.30 | |
| Refrigerant /GWP | R290/3 | ||
| Rated water flow | m³/h | 8.60 | |
| Fan quantity | / | 1 | |
| Fan motor type | / | DC inverter | |
| Compressor | / | Hitachi DC inverter | |
| IP Class | / | IPX4 | |
| Sound pressure at 1m distance | dB(A) | 65 | |
| Max outlet water temperature | °C | 75 | |
| Water piping connections | / | DN 40 (G 1-1/2″) | |
| Water Pressure drop(max) | kPa | 65 | |
| Min/Max Water Pressure | MPa | 0.1/0.3 | |
| Operating temperature range (Heating mode) | °C | -25~45 | |
| Operating temperature range (Cooing mode) | °C | 16~45 | |
| Unpacked Dimensions ( L×D×H ) | mm | 1155*990*1880 | |
| Packed Dimensions ( L×D×H ) | mm | 1238×1058×2033 | |
| Net Weight | kg | 500 | |
| Packed Weight | kg | 540 | |
| Container Loading quantity(20GP/40GP/40HQ) | / | 10/22/22 | |
