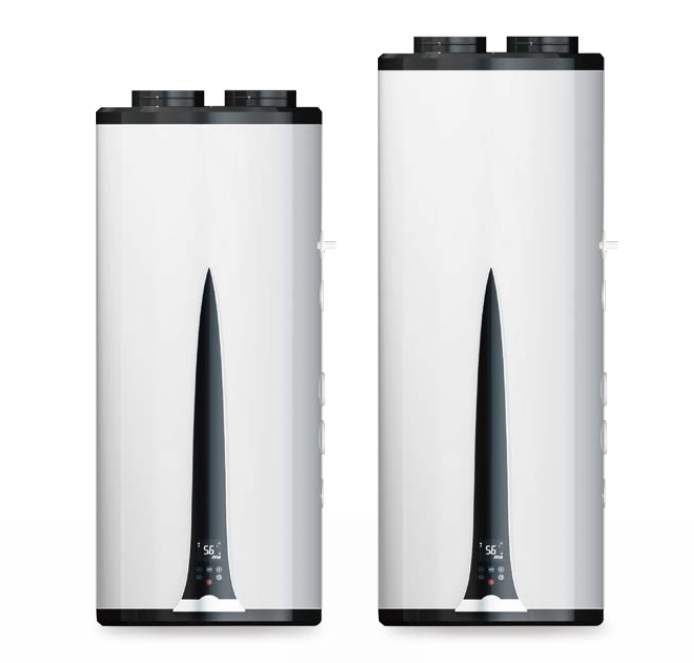

R290 Wall Mounted All In One Heat Pump Water Heater
- 80L/100L
Features:
- Energy class: A+
- Maximum outlet water temperature up to 75℃
- R290 refrigerant, environmentally friendly
- WIFI smart control
| R290 Wall Mounted All In One Heat Pump Water Heater | ||
| Installation | Wall Mounted-Vertical | |
| Model No. | YT-080GV2 | YT-100GV2 |
| Power Supply | 220~240V/1/50Hz | |
| Heating Capacity at Air 20°C/15°C, Water Temperature from 15°C to 55°C | ||
| Heating Capacity | 950W | 950W |
| Power Input | 220W | 220W |
| Rated Current | 0.98A | 0.98A |
| COP | 4.32 | 4 |
| Hot Water Production (in ECO mode) | 20L/h | 20L/h |
| Hot Water Production (in HYB mode) | 64L/h | 64L/h |
| Refrigerant | R290 / 150g | R290 / 150g |
| Electric Heating Element | ||
| Electric Heating current | 0.87A | 0.87A |
| Max Power Input | 2300W | 2300W |
| Max Current | 10.2A | 10.2A |
| Water Tank Volume | 80L | 100L |
| Heax Exchanger | Micro-channel / Wrap Around Tank | |
| Max Water Tank Pressure | 0.8MPa | 0.8MPa |
| IP Class | IPX4 | IPX4 |
| Service Water Temperature Range(HP) | ||
| Service Water Temperature Range(HE) | 20~75°C | 20~75°C |
| Working Temperature Range (heat pump) | -7~43°C | -7~43°C |
| Water Tank Direction | Vertical | Vertical |
| Noise | 48dB | 48dB |
| Installation | Wall Mounted | Wall Mounted |
| Max. air flow | 210 m3/h | 210 m3/h |
| Max. static pressure | 85 Pa | 85 Pa |
| Rated air flow (without duct) | ||
| Water connection | 1/2 inch | 1/2 inch |
| Net Size | Φ468mm*1222mm | Φ468mm*1442mm |
| N.W | 48 | 56.00 |
